8.5 GHz Signal Generator
Key Features
- 4 or 8 output channels, control of up to 8 qubits
- Operation from DC to 8.5 GHz with 1 GHz bandwidth and free from mixer calibration. [site:contact:modal-link] if frequencies >8.5 GHz are required.
- Low output noise density, low phase noise and high output power for fast high-fidelity gates
- High output power for short gate pulses without external amplification
- 14-bit output at 6 GSa/s
- Controlled through the LabOne® Q Software, LabOne, or LabOne's APIs for Python, C, MATLAB®, LabVIEW™ and .NET
Variants
Price
Contact us for pricing information

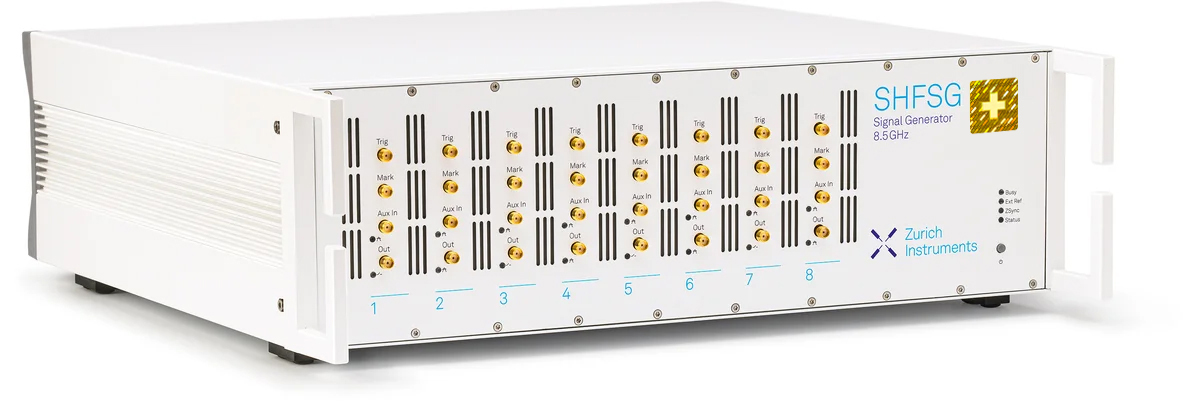

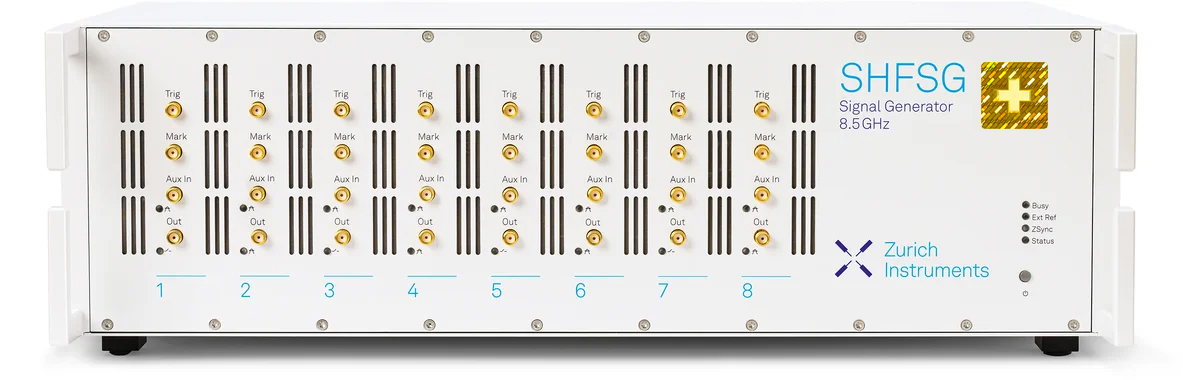

The Zurich Instruments SHFSG+ Signal Generator produces qubit control signals in the frequency range from DC to 8.5 GHz with a spurious-free modulation bandwidth of 1 GHz. The SHFSG+ uses a double superheterodyne technique for frequency up-conversion, which eliminates the need for mixer calibration and saves time on system tune-up. Each SHFSG+ comes with 4 or 8 analog output channels with 14-bit vertical resolution. Controlled by LabOne, its APIs or the LabOne Q Software, the SHFSG+ supports quantum computing projects with sizes ranging from a few to several hundred qubits.
When synchronized by a QHub Quantum System Hub, multiple SHFSG+ can be combined within a Zurich Instruments QCCS to enable control of many-qubit systems. Multi-qubit gate operations with minimal latency and high fidelity can be realized thanks to an advanced sequencer, a low-latency signal processing chain and low-phase-noise synthesizers. Combined with the SHFQA+ Quantum Analyzer for real-time qubit readout, the SHFSG+ represents the second generation of instruments integrating microwave generation and analysis.
